UL11627 hook-up wire with durable PVC insulation, UL-recognized and rated 105°C/2000V. Provides reliable high-voltage performance for ESS, power modules, and machinery.

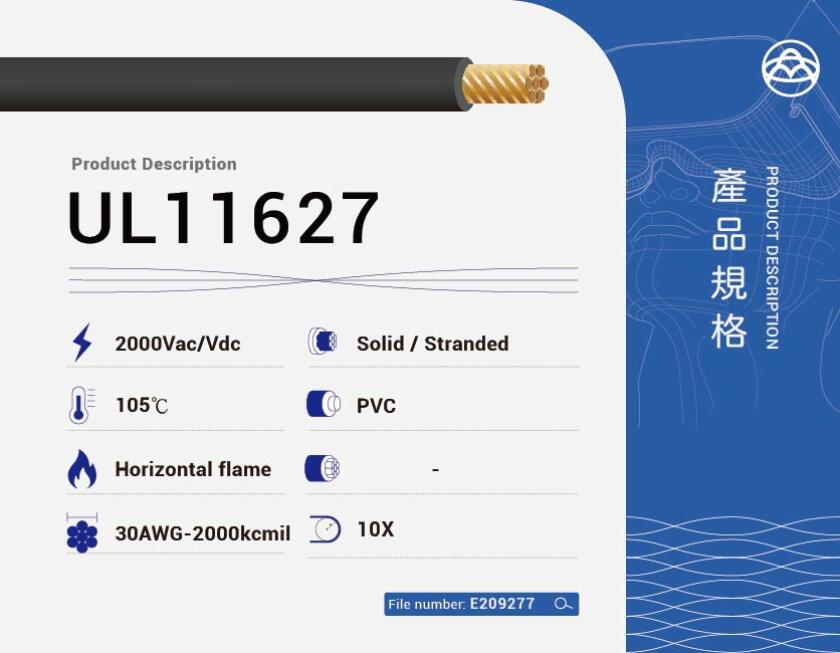

UL11627 Hook-Up Wire – 2000V 105°C PVC-Insulated Wire for High-Voltage Applications

UL11627 is a UL-recognized single-conductor hook-up wire designed for internal wiring in high-voltage electrical and electronic equipment. Rated for 2000V and operating temperatures up to 105°C, it features a durable PVC insulation, providing reliable performance in various applications.

This wire is suitable for applications requiring dependable high-voltage connections and durability, such as in energy storage systems, power modules, and industrial machinery. Its construction allows for flexibility in routing while maintaining compliance with safety standards.


Key Features of UL11627 Hook-Up Wire

  • Voltage Rating: 2000V

  • Temperature Rating: 105°C

  • Conductor Sizes: 30 AWG to 2000 kcmil, solid or stranded, bare or tinned copper

  • Insulation: Extruded PVC, resistant to moisture, oil, solvents, and fungus

  • Flame Resistance: Passes UL VW-1 & CSA FT1 vertical flame test

  • Standards Compliance: UL 758 AWM Style 11627

  • RoHS & REACH Compliant


Application

  • Internal wiring of high-voltage electrical and electronic equipment

  • Energy storage systems and battery connections

  • Power modules and inverters

  • Industrial machinery and control panels

  • Solar power systems and EV charging stations

UL11627 wire is engineered to deliver consistent performance in various environments, offering flexibility, durability, and compliance with safety standards.
