UL3122 Flexible Silicone Wire
UL3122 Flexible Silicone Wire｜200°C 300V High-Temperature Cable｜UL Certified

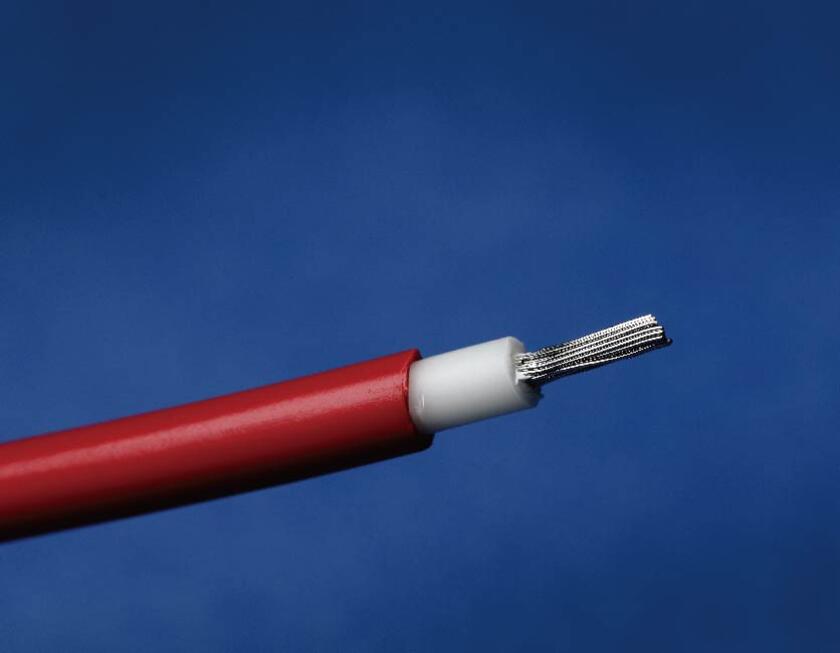

UL3122 is a high-temperature, flexible hook-up wire constructed with stranded or solid tinned copper conductors and silicone rubber insulation. It is rated for 300V and 200°C continuous operation, providing reliable thermal endurance and electrical insulation in demanding environments.
UL3122 Flexible Silicone Wire｜200°C 300V High-Temperature Cable｜UL Certified
UL3122 is a high-temperature, flexible hook-up wire constructed with stranded or solid tinned copper conductors and silicone rubber insulation. It is rated for 300V and 200°C continuous operation, providing reliable thermal endurance and electrical insulation in demanding environments.
Key Features of UL3122 Flexible Silicone Rubber Wire
- Conductor: Stranded or Solid Tinned Copper
- Insulation: Silicone Rubber
- Rated Temperature: -60°C to +200°C
- Rated Voltage: 300V
- Flame Resistance: Passes Horizontal Flame Test; VW-1 available upon request
- Flexibility: Excellent for compact assemblies and thermal cycling environments
- Compliance: RoHS and REACH compliant
Typical Applications for UL3122 200°C 300V Silicone Hook-Up Wire
- Internal wiring of electric heating appliances (ovens, heaters)
- Motor lead wires exposed to high temperatures
- Wiring for industrial ovens and kilns
- High-temperature control circuits within appliances and industrial systems
- Internal wiring of thermal processing equipment
Related Links
- Explore UL3132 Flexible Silicone Wire (150°C, 300V)
- Learn About UL3239 High-Voltage Silicone Wire (3kV)
Additional References
Need assistance selecting the right wire? Our technical team is ready to help you choose the best cable for your project.
