UL3266
UL3266 single-conductor wire with XLPE insulation, UL-certified and rated 125°C/300V. Ensures heat resistance, voltage stability, and flame performance for internal wiring.
UL3266 XLPE Insulated Wire – 125°C / 300V Halogen-Free Hook-Up Wire for Internal Wiring Applications

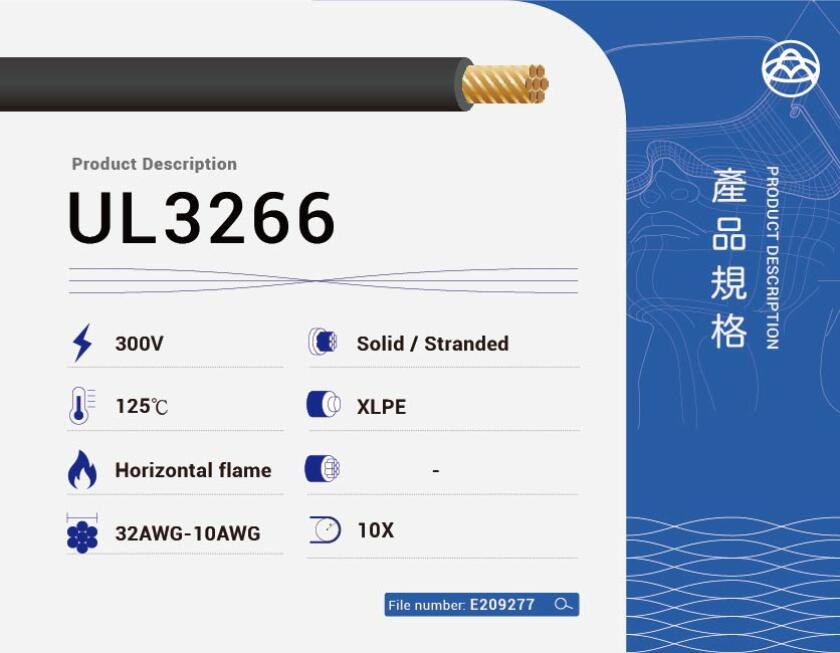

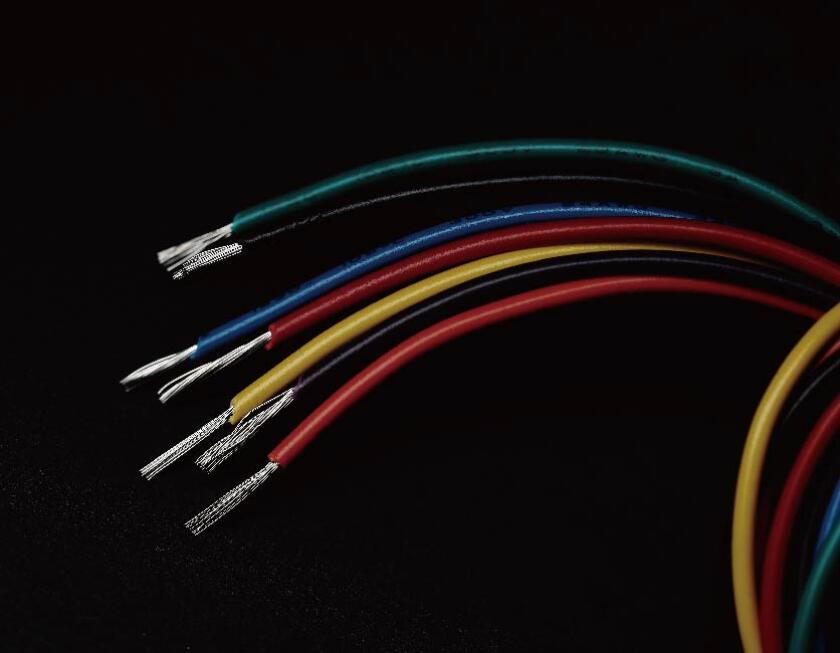

UL3266 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE). Rated for 125°C and 300V, this wire is designed for internal wiring in electronic and electrical equipment where high heat resistance, voltage stability, and flame performance are critical.
Key Features
Conductor: Stranded tinned copper, available in sizes from 26 AWG to 10 AWG
Insulation: Extruded XLPE with a nominal thickness of 0.41 mm (16 mils)
Temperature Rating: Up to 125°C
Voltage Rating: 300V
Flame Resistance: Passes UL VW-1 and CSA FT1 vertical flame tests
Environmental Compliance: RoHS and REACH compliant, halogen-free
Standards: Complies with UL 758 Appliance Wiring Material (AWM) Style 3266
Usage: Designed for internal wiring in electronic and electrical equipment
Conductor Resistance Reference (20°C, Ω/km)
| AWG | Resistance (Ω/km) |
| 26 | 143 |
| 24 | 89.3 |
| 22 | 56.4 |
| 20 | 35.2 |
| 18 | 22.2 |
| 16 | 14.0 |
| 14 | 8.96 |
| 12 | 5.64 |
| 10 | 3.55 |
Common Applications
Internal wiring in electronic devices, medical equipment, and instrumentation
Applications requiring high heat resistance and high-voltage performance
Internal connections in industrial control panels, motors, and transformers
Suitable for lighting systems, heating equipment, and household appliances
External Technical Reference
Need assistance selecting the right wire?
Our technical team is ready to help you choose the best UL3266 cable for your project.
