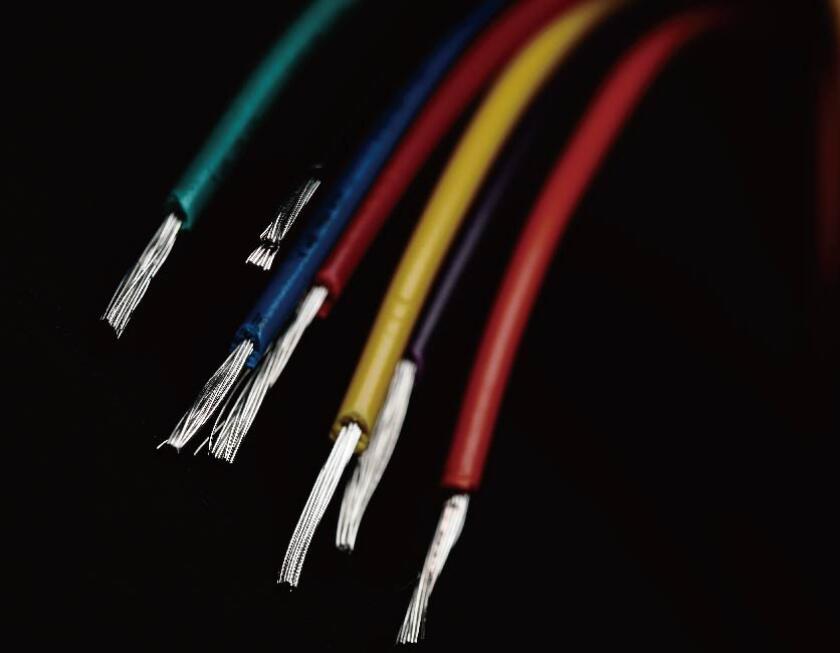

UL3886 XLPE Insulated Wire
UL3886 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE), rated for 125°C and 1500V. It is designed for high-voltage and high-temperature environments, making it ideal for applications such as energy storage systems (ESS), industrial control, electric vehicles, and photovoltaic installations.
UL3886 XLPE Insulated Wire – 125°C / 1500V High-Performance Cable for Energy Storage and Industrial Applications
UL3886 is a UL-certified single-conductor wire insulated with cross-linked polyethylene (XLPE), rated for 125°C and 1500V. It is designed for high-voltage and high-temperature environments, making it ideal for applications such as energy storage systems (ESS), industrial control, electric vehicles, and photovoltaic installations.
Key Features
Conductor: Bare or tinned copper, solid or stranded, available from 44 AWG to 2000 kcmil
Insulation: XLPE for excellent electrical and mechanical properties
Temperature Rating: -40°C to +125°C
Voltage Rating: 1500V AC
Flame Resistance: Passes UL VW-1 and CSA FT1 vertical flame tests
Standards: UL758, UL1581, CSA C22.2 No.210
Common Applications
Battery modules and inverter connections in energy storage systems (ESS)
Internal wiring of industrial control systems and automation equipment
High-voltage connections in electric vehicles (EVs) and charging infrastructure
Power transmission in solar photovoltaic (PV) systems
Environments requiring enhanced heat resistance and flame retardancy
External Technical Reference
