UL1429
UL1429 hook-up wire with XLPVC insulation, UL-recognized and rated 80°C/150V. Provides durable, flexible, and safe internal wiring for appliances, control panels, and industrial machinery.
UL1429 Hook-Up Wire – 150V 80°C XLPVC-Insulated Wire for Internal Wiring Applications

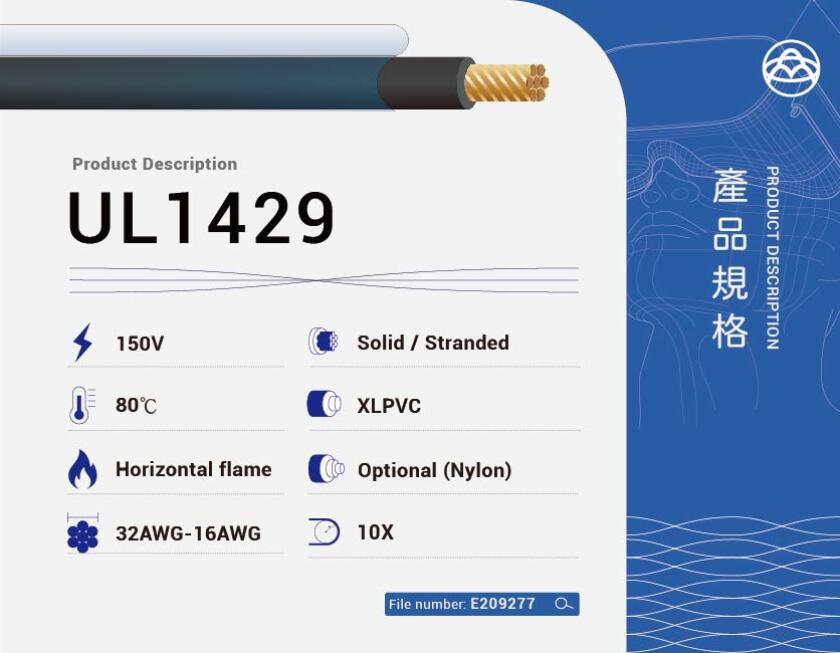

UL1429 is a UL-recognized single-conductor hook-up wire designed for internal wiring in electronic and electrical equipment. Rated for 150V AC and operating temperatures up to 80°C, it features durable Cross-Linked Polyvinyl Chloride (XLPVC) insulation, ensuring reliable performance across various applications.
This wire is ideal for scenarios demanding dependable low-voltage connections and durability, such as control panels, appliances, and industrial machinery. Its design offers flexibility in routing while adhering to stringent safety standards.
Key Features
Voltage Rating: 150V AC
Temperature Rating: 80°C
Conductor Sizes: 32 AWG to 16 AWG, solid or stranded
Conductor Material: Bare or tinned copper
Insulation: Extruded XLPVC
Minimum Average Thickness: 9 mils
Minimum Thickness at Any Point: 7 mils
Optional Covering: Extruded nylon (minimum 2 mils) or lacquered braid
Flame Resistance: Passes UL Horizontal Flame Test
Standards Compliance: UL 758 AWM Style 1429
Environmental Compliance: RoHS & REACH Compliant
Applications
Internal wiring of electronic and electrical equipment
Control panels and industrial machinery
Appliances requiring reliable internal connections
Point-to-point wiring in meters and instrumentation
UL1429 wire is engineered to deliver consistent performance in various environments, offering flexibility, durability, and compliance with safety standards.
