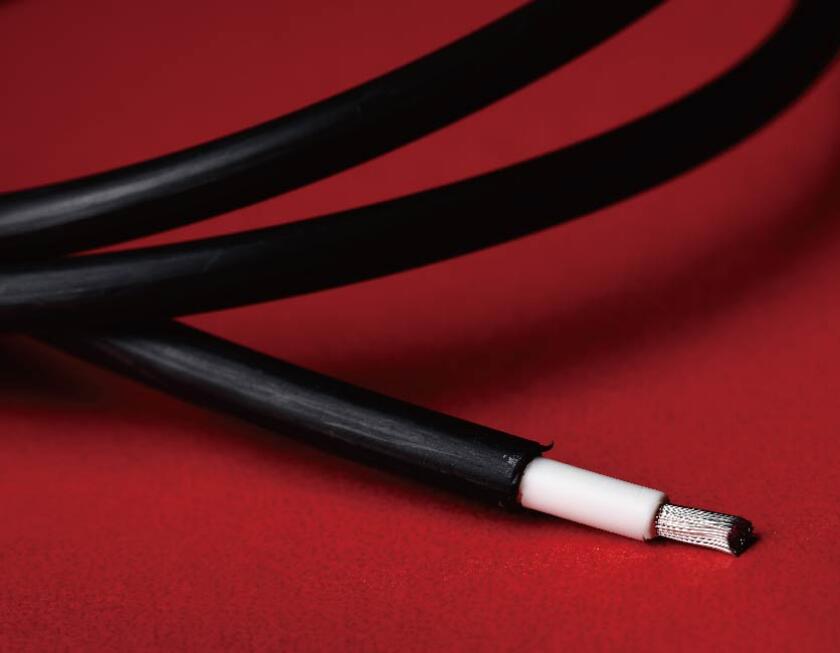

UL1365 PE insulated Wire
UL1365 coaxial cable, UL-certified for 60°C/300V. Flame-retardant PE insulation with shielding ensures reliable signal transmission in AV, RF, and control devices.
UL1365 Coaxial Cable – 60°C / 300V Shielded Wire for Internal Signal and Data Transmission
UL1365 is a UL-certified coaxial cable designed for internal wiring of electronic and signal-transmitting equipment. Rated for 60°C and 300V, it features a flame-retardant polyethylene (PE or FRPE) insulation with optional shielding, providing excellent signal integrity and EMI protection in low-voltage applications.
This cable is ideal for applications that demand reliable coaxial transmission, compact routing, and effective electromagnetic shielding, commonly used in audio/video devices, RF signal lines, and control equipment.
Key Features
Conductor: Solid or stranded bare/tinned copper, 30–16 AWG
Insulation: PE or FRPE, nominal thickness 0.58 mm (23 mils)
Shielding: Optional tinned copper braid or aluminum foil wrap
Jacket: PVC (Polyvinyl Chloride), nominal thickness 0.38 mm (15 mils)
Impedance: Available in 50Ω or 75Ω configurations
Temperature Rating: 60°C
Voltage Rating: 300V
Flame Resistance: Passes UL Horizontal Flame Test
Standards: UL 758, UL 1581, AWM Style 1365
RoHS / REACH Compliant
Conductor Resistance (20°C Reference Table, Ω/km)
| AWG | Resistance (Ω/km) |
| 30 | 381 |
| 28 | 239 |
| 26 | 150 |
| 24 | 94.2 |
| 22 | 59.4 |
| 20 | 36.7 |
| 18 | 23.2 |
| 16 | 14.6 |
Common Applications
Internal signal wiring in audio/video systems
Coaxial RF cable for low-frequency applications
Data transmission in industrial control systems
Shielded connections in measurement equipment
EMI-sensitive wiring in consumer electronics
