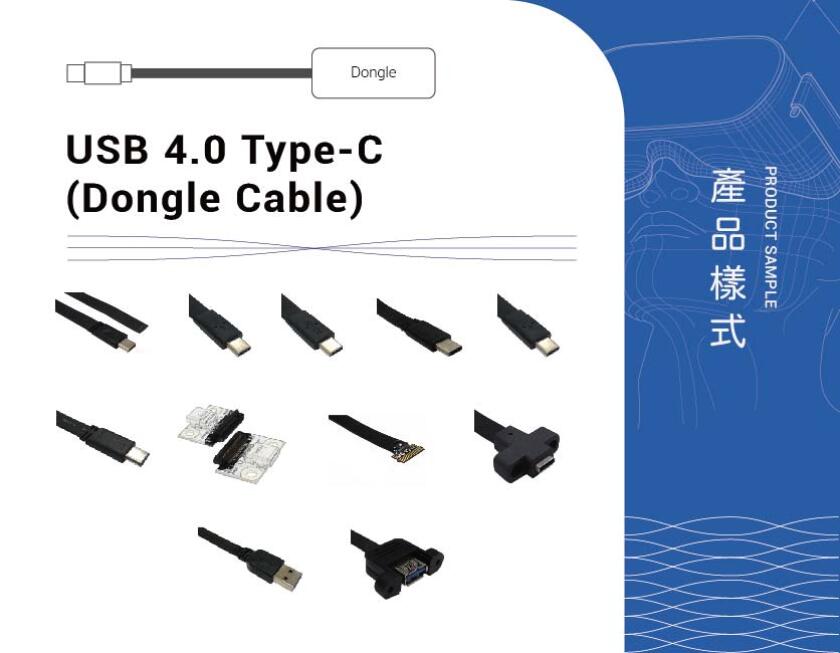

USB 4.0 Type-C (Dongle Cable)

USB 4.0 Type-C Dongle Cable Series by 3A PLUS supports up to 40 Gbps, power delivery, and Alt Mode. Ultra-thin design ideal for SSDs, docking modules, and embedded systems.


USB 4.0 Type-C Dongle Cable | High-Speed Embedded Cable for SSD & Docking

The USB 4.0 Type-C Dongle Cable Series from 3A PLUS is a high-speed, ultra-thin solution designed for embedded systems, SSDs, and docking modules. Supporting up to 40 Gbps (USB4 / Thunderbolt 3), this cable series is ideal for compact electronic devices requiring fast data transmission, power delivery, and Alt Mode functionality.


Features

  • Interface: USB 4.0 / USB 3.2 Gen2 / Gen3 / Thunderbolt 3

  • Speed: Up to 40 Gbps (USB4 / TB3), Gen2 10G / Gen2x2 20G

  • Connector Types: USB Type-C (C24M / C24F), ZIF / open-end

  • Cable Thickness: 1.25 mm ultra-thin design

  • Length Options: 5 cm to 100 cm (customizable)

  • Power Delivery: Supports 20V / 5A (optional e-Mark)

  • Certifications: Multi-national patents, halogen-free

  • Features: 21P / 13P pitch, Alt Mode (DP1.4, HDMI), Redriver / Retimer versions available


Applications

  • Embedded dongles and tablet modules

  • NVMe SSD interfaces and external USB devices

  • USB-C docking stations and converters

  • High-speed signal routing in compact systems

  • Devices requiring DP Alt Mode or USB-C power
