USB 4.0／3.2 Type-C 扁平線採用 1.25 mm 無鹵設計，支援 USB Gen2／Gen2x2、Thunderbolt 3、DP、HDMI 與 PCIe 傳輸。適用於嵌入式、工業及模組化系統應用。


USB 4.0 / 3.2 Type-C Flat Cable | Ultra-Thin Cable with Thunderbolt 3 and Alt Mode Support


USB 4.0 / 3.2 Type-C Flat Cable is a high-performance cable designed for external high-speed data and power transmission. Engineered with an ultra-thin 1.25 mm halogen-free profile, this cable supports USB Gen2/Gen2x2, Thunderbolt 3, and Alternate Modes including DP, HDMI, and PCIe, making it ideal for embedded, industrial, and modular system designs.


Key Features

  • Cable Type: Ultra-thin flat cable (1.25 mm), halogen-free

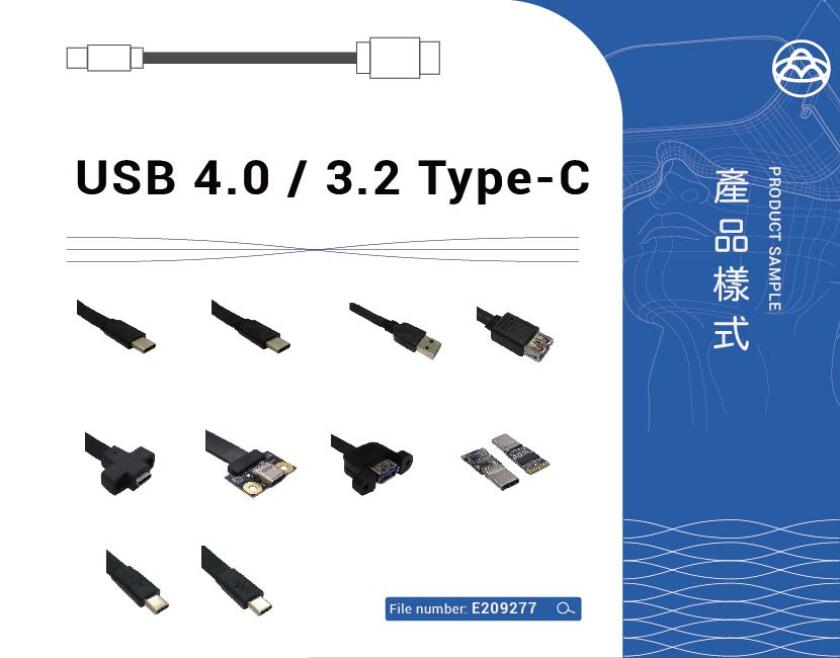

  • Connector Type: Dual C24M, C24F, U3 A9M/F, U3 Micro-B, Type-B

  • Data Transfer: Up to 40Gbps (USB4 / TB3), Gen2x2 / Gen2

  • Power Output: Up to 20V / 5A (with E-mark)

  • Length Range: 5 cm to 1 m (standard), custom lengths available

  • Design: 180° bendable, stable impedance, reversible

  • Functionality: Supports DP Alt Mode, HDMI, USB PD, Thunderbolt 3

  • Applications: External I/O, docking stations, VR modules, embedded systems


Applications

  • High-speed USB4 or Thunderbolt 3 external transmission

  • Industrial computer and embedded module interface

  • Modular docking, GPU enclosures, retimer/redriver use

  • VR headset, thin client, and signal hub systems

  • Systems requiring flexible, slim, and secure Type-C connections
