UL2517
UL2517 multi-conductor cable, 300V and 105°C rated, with PVC insulation and optional shield, offers flexible, flame-resistant wiring for electronics.

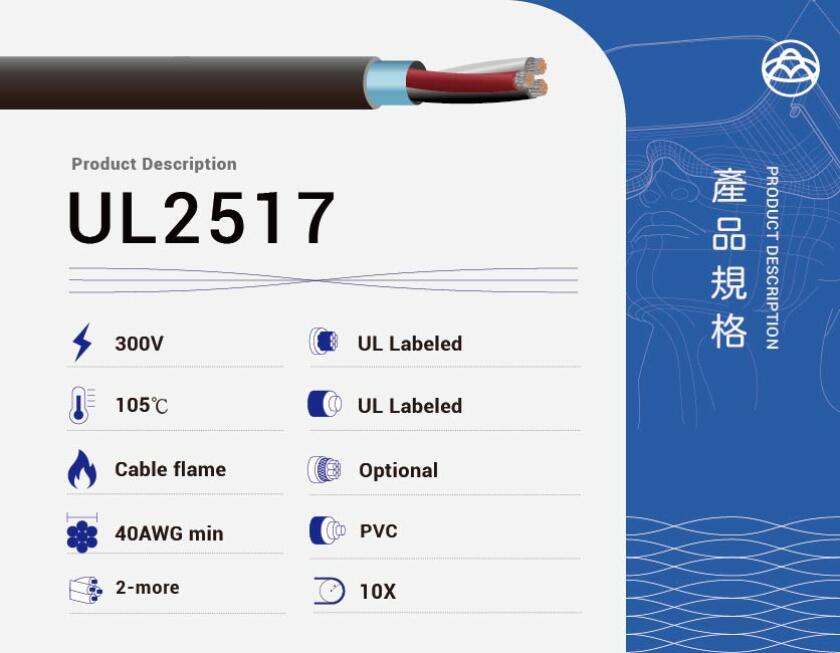

UL2517 PVC Insulated Cable – 105°C / 300V Multi-Conductor Wire for Internal Electronic Applications

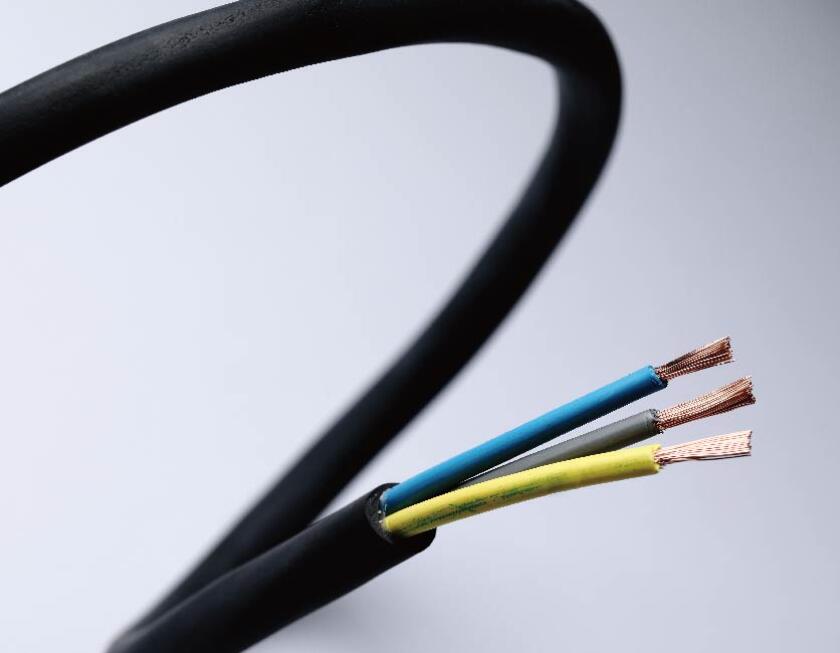

UL2517 is a UL-certified multi-conductor cable designed for the internal wiring of electronic equipment. Rated for 105°C and 300V, this cable features stranded tinned or bare copper conductors, PVC insulation, and an optional shield and jacket. It complies with the VW-1 flame test under UL 758 AWM standards, making it suitable for applications requiring flexibility and flame resistance.
Key Features
Conductor: Stranded tinned or bare copper
Insulation: PVC
Shield: Optional (e.g., aluminum foil, braid)
Jacket: PVC
Temperature Rating: 105°C
Voltage Rating: 300V
Flame Resistance: Passes VW-1 Flame Test
Standard: UL 758 AWM Style 2517
Application: Internal wiring of electronic equipment
Applications
Internal wiring in electronic devices
Signal transmission in computers and peripherals
Control wiring in industrial equipment
Audio and video equipment wiring
